Severe satellite droplet ejection

Droplet generation in an emulsion with high Span 80 concentration.

Last updated on Nov 23, 2021 1 min read

Description

Severe satellite droplet ejection of an emulsion of water droplets in hexadecane media. Electric field is applied with patterned planar electrodes.

Experimental conditions:

  • Electrode spacing: 100 μm
  • Voltage: 400 V
  • Frequency: 1 kHz
  • Surfactant (Span 80) concentration: 1 wt.%

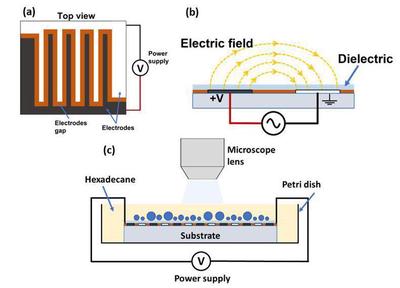

Experimental setup:

screen reader text
